Photonfocus, A1312, 1″, 1312 x 1082, 108fps, LVCMOS

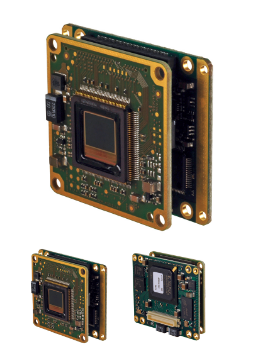

For customer that prefer to design their own camera solution but do not want to spend time on the sensor integration we offer a range of OEM camera modules. All of the features and technical data are identical to the standard cameras except for the interface board which is not included. Thus making it a perfect solution to interface to your own embedded vision system.对于喜欢设计自己的相机解决方案但又不想花时间在传感器集成上的客户,我们提供了一系列OEM相机模块。所有的特性和技术数据都与标准摄像机相同,只是接口板没有包括在内。从而使它成为一个完美的解决方案,以接口到您自己的嵌入式视觉系统。
The module series OEM1-D1312(I/IE/C)-CL is based on the Photonfocus A1312, A1312I and A1312IE CMOS image sensors. These Photonfocus CMOS sensors with a full well capacity (FWC) of 90 ke– are optimized for high dynamic range applications and a high signal-to-noise ratio (SNR). The modules have a parallel interface. 模块系列OEM1-D1312(I/IE/C)-CL基于Photonfocus A1312、A1312I和A1312IE CMOS图像传感器。针对高动态范围的应用和高信噪比(信噪比),对具有全阱容量(FWC) 90克的光子聚焦CMOS传感器进行了优化。这些模块有一个并行接口。
Sensor: | Photonfocus, A1312 |
Frame rate: | 108fps |
Optical format: | 1″ |
Sensor Resolution: | 1312 x 1082 |
Pixel size: | 8μm x 8μm |
I/O Input: | details in the manual |
I/O Output: | details in the manual |
Dimensions: | 53 x 44 x 19mm³ |
